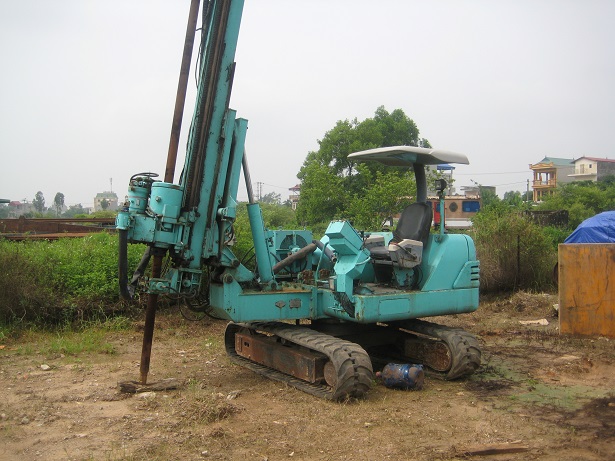

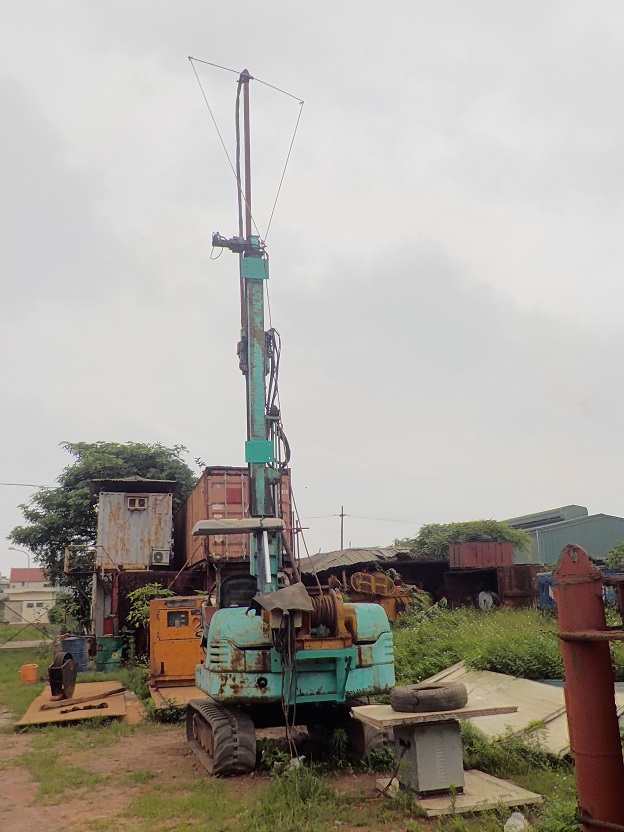

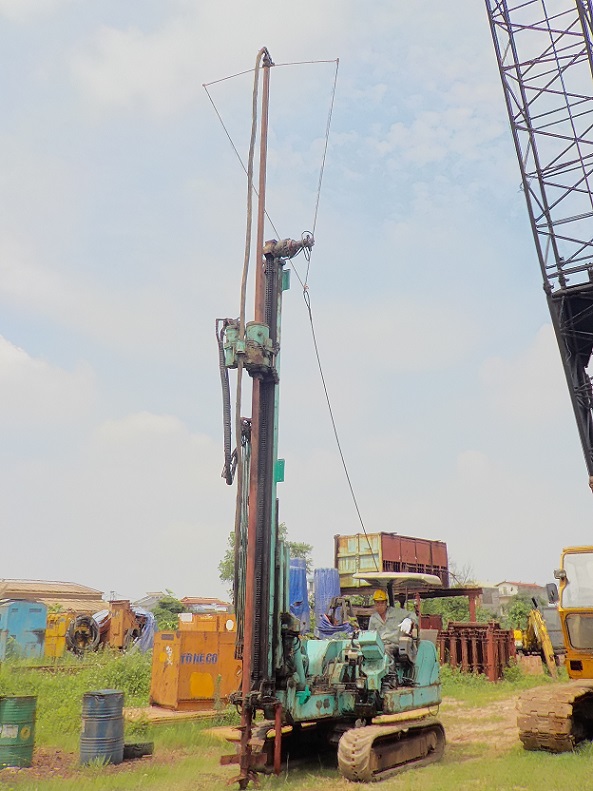

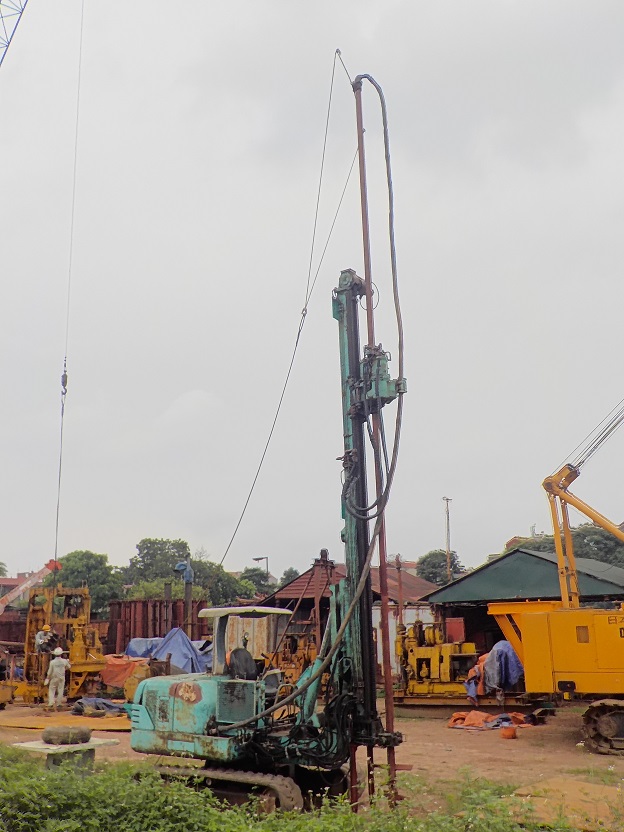

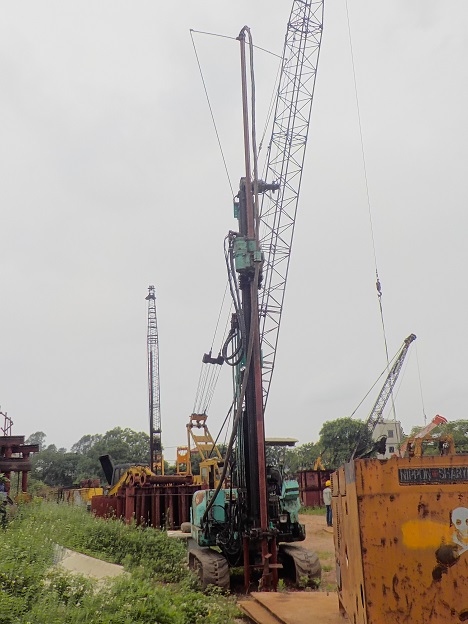

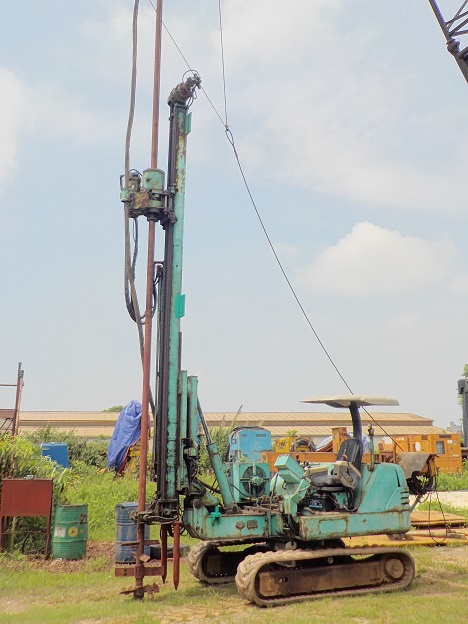

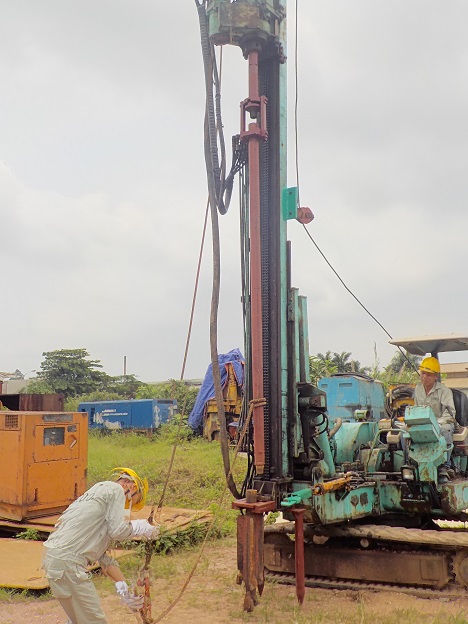

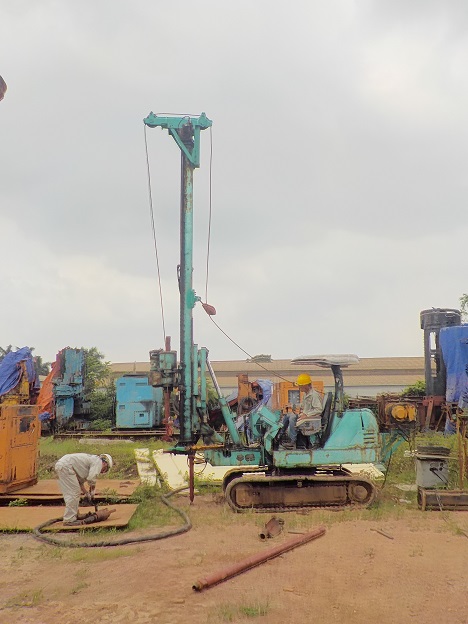

Máy khoan tạo lỗ và xử lý nền đất yếu
GT650

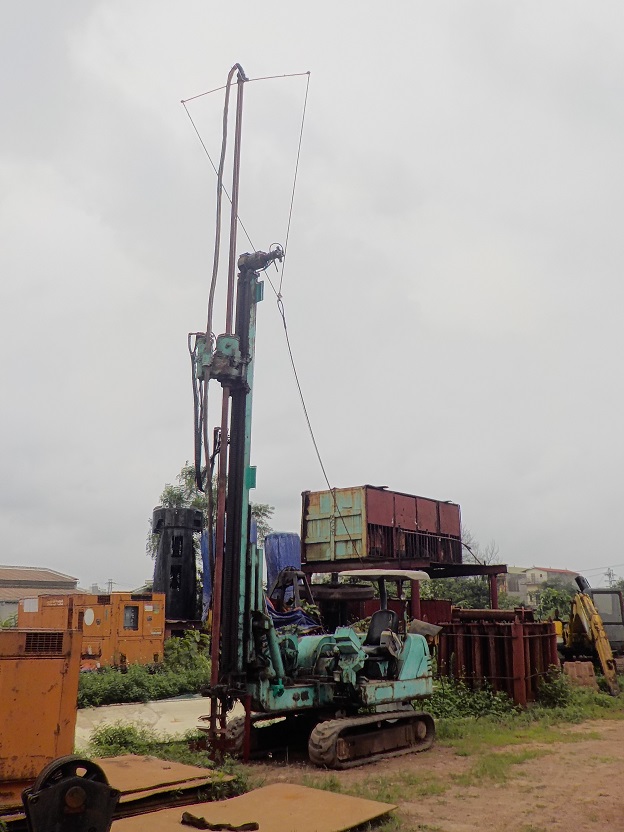

| MACHINE SPECIFICATION OUTLINE | |||
| Machine Type: | Soil Improvement & Bring Machine | ||

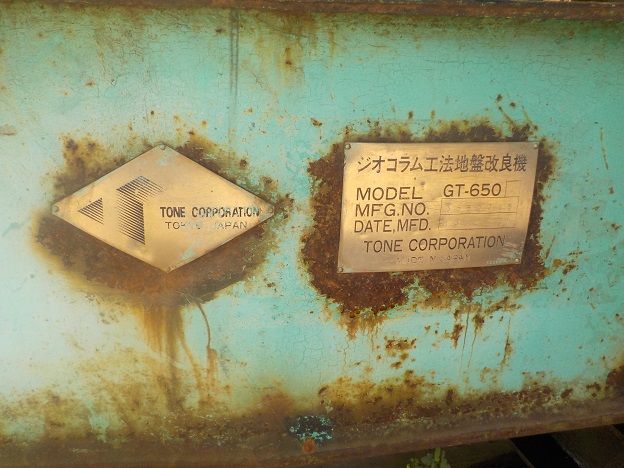

| Model: | GT650 | ||
| Manufacturer: | Tone | ||
| Manufacture Year: | November 1994 | ||
| Serial Number: | 3650025 | ||

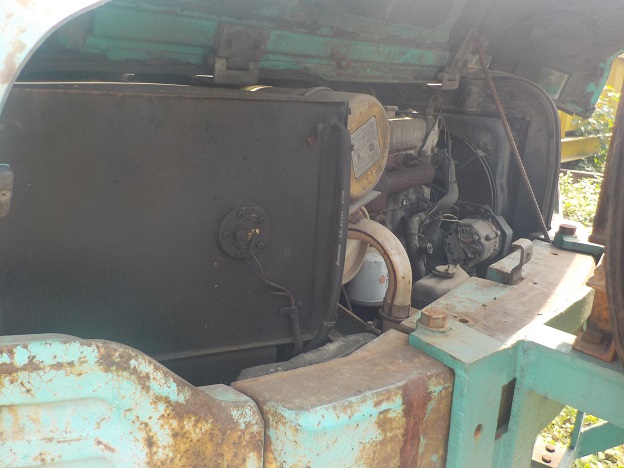

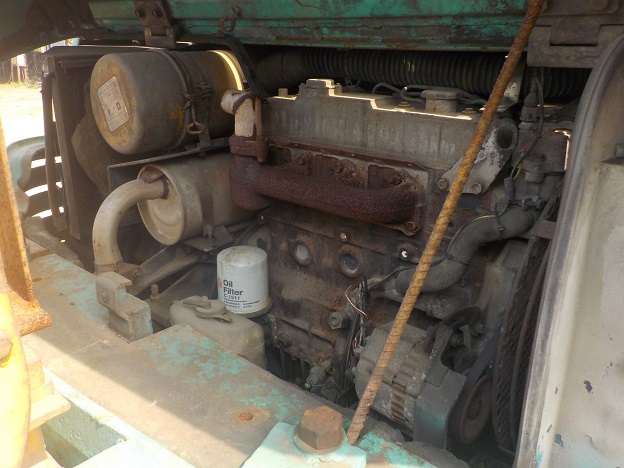

| Diesel Engine: | Isuzu 4JB1 Serial Number 079544 | ||

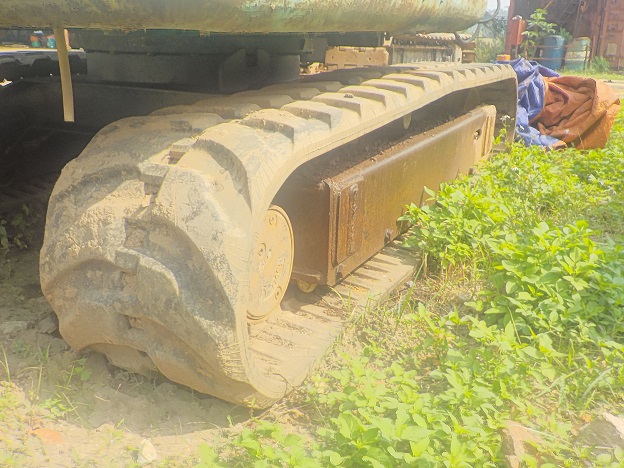

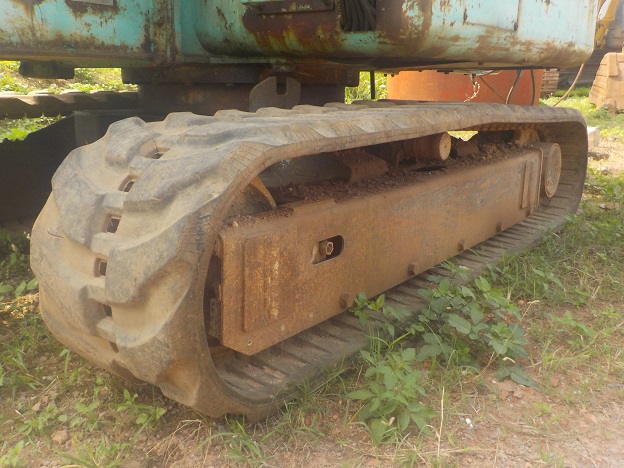

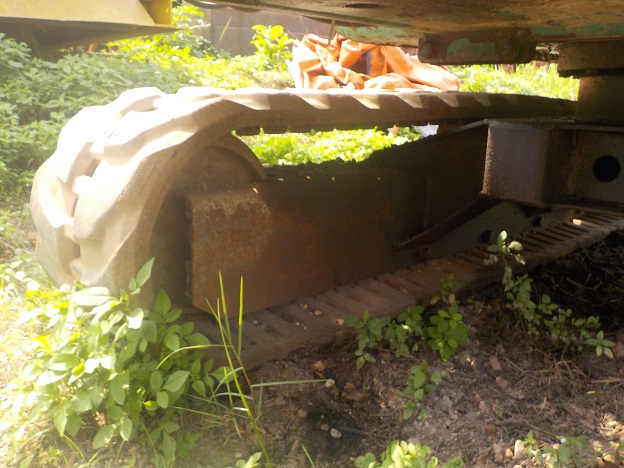

| Base Machine: | IHI 45j S/N 16006814 | ||

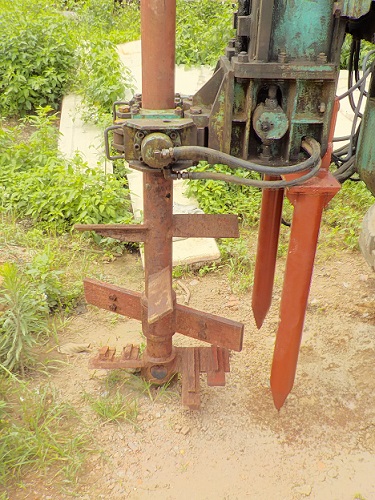

| Improvement Diameter: ~600mm | Depth: 8.0m | ||
| Bring Diameter: | ~500mm | Depth: 30.0m | |

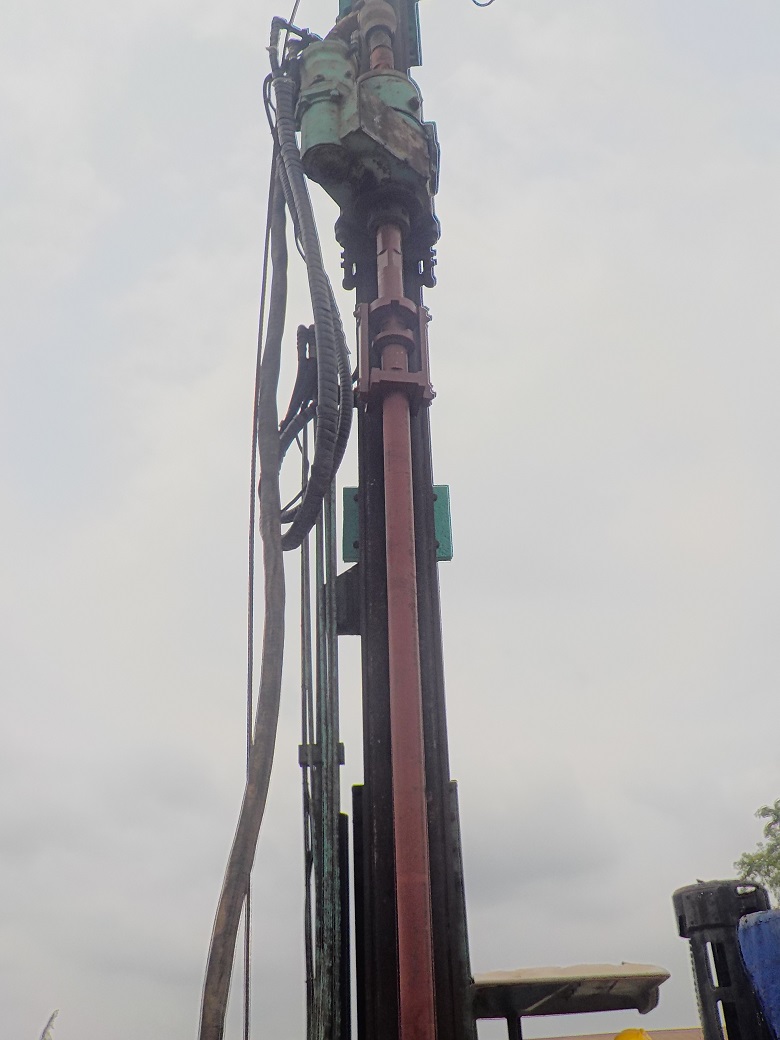

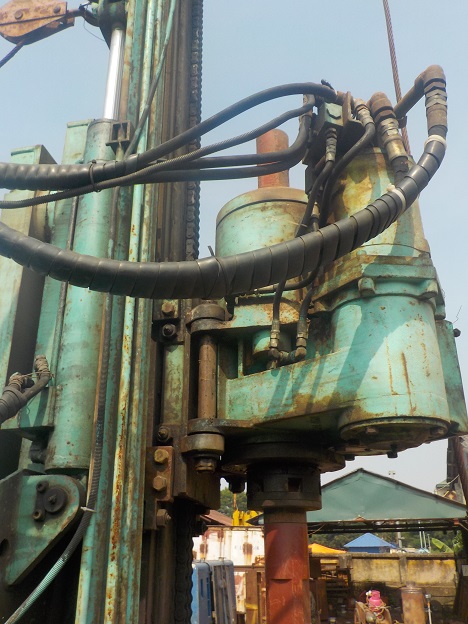

| Spindle inner Diameter: | 90.0mm | Spindle Torque | 650kgf.m (6.37KN.m) |

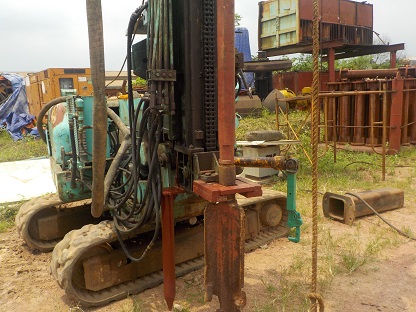

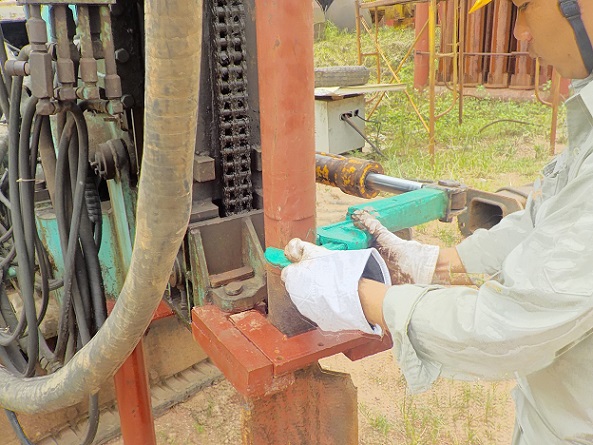

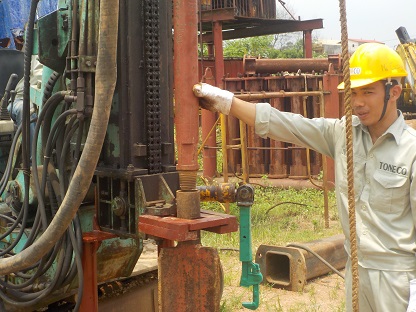

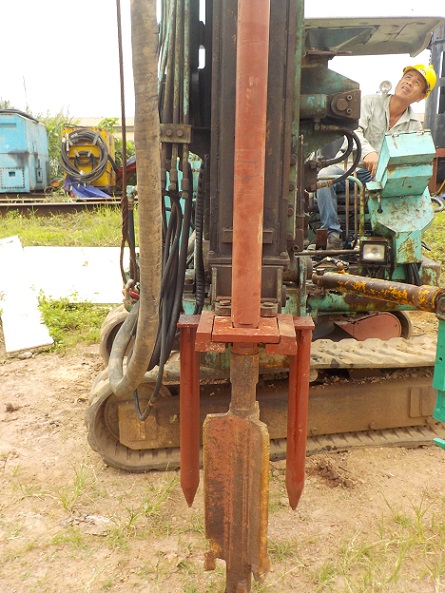

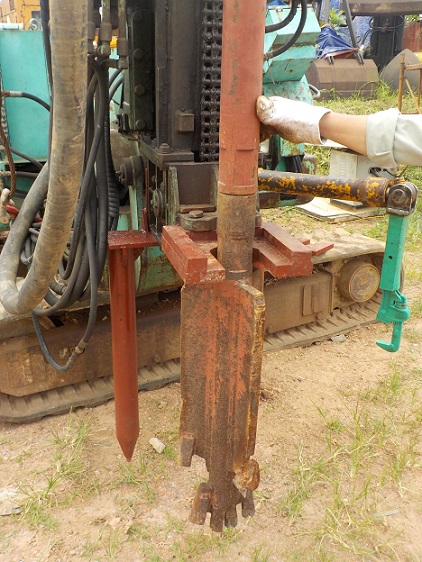

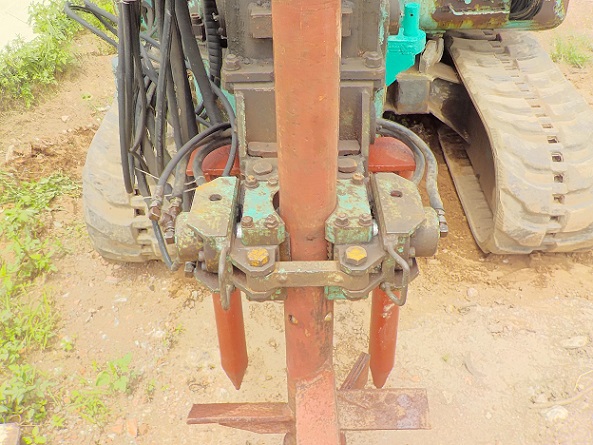

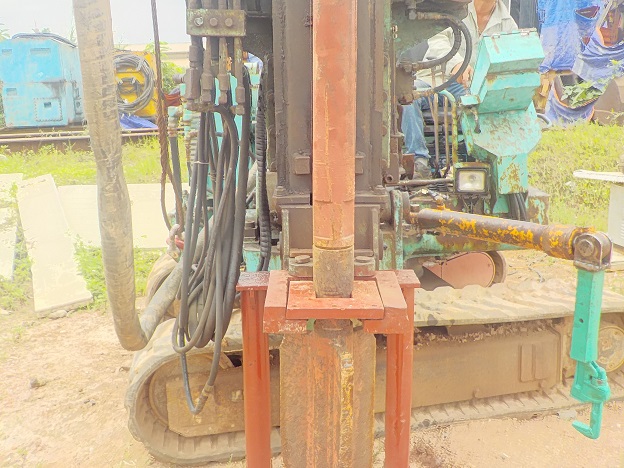

| Hydraulic Oil Chuck: | Spring Chuck Using Drill Rod 88.9mm (T90) Soil Improvement Condition | ||

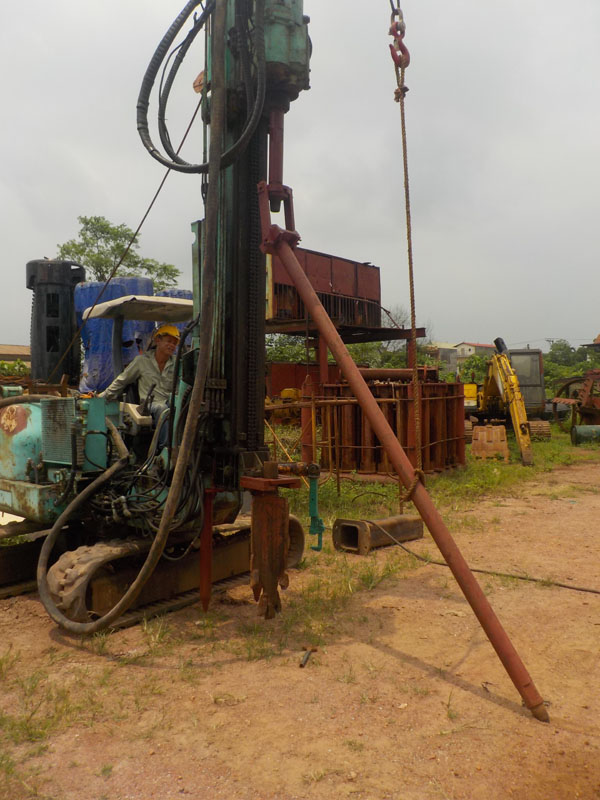

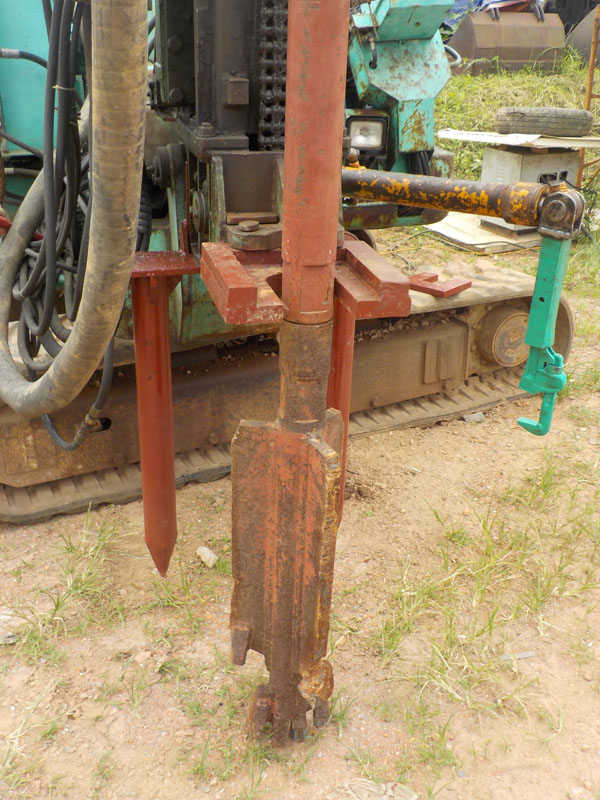

| Using Drilling Rod: | T90 OD 88.9mm | ||
| • For the photographs: | In case of selling this machine, Rod & Bit, Electric Winch shall be | ||
| sold separately | |||
| Toneco Corporation | |||
