Máy khoan tạo lỗ và xử lý nền đất yếu

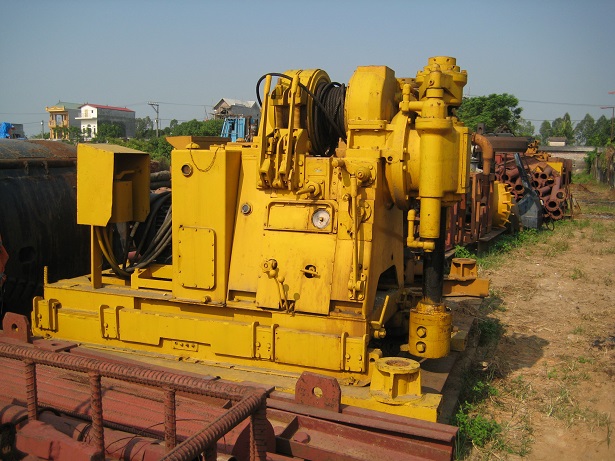

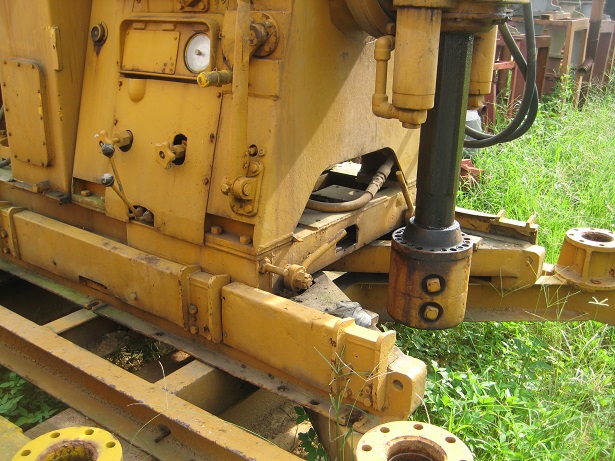

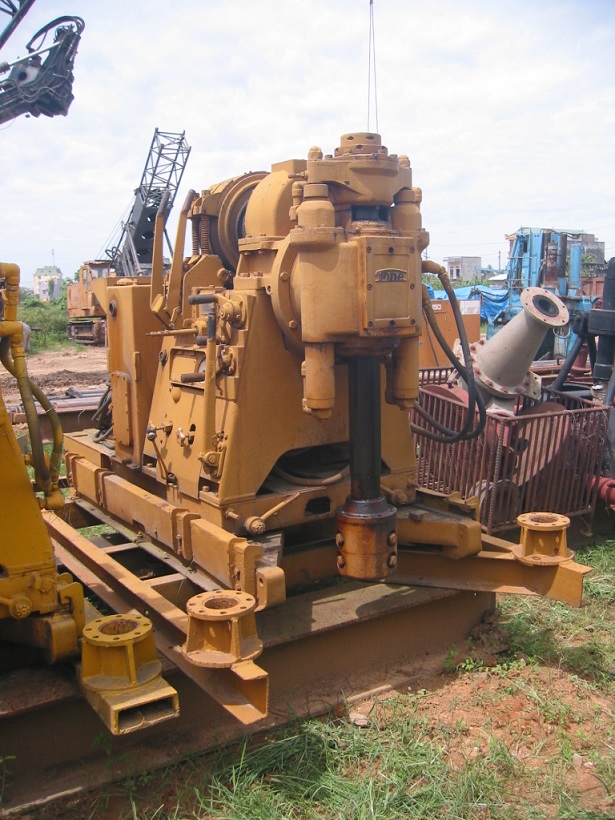

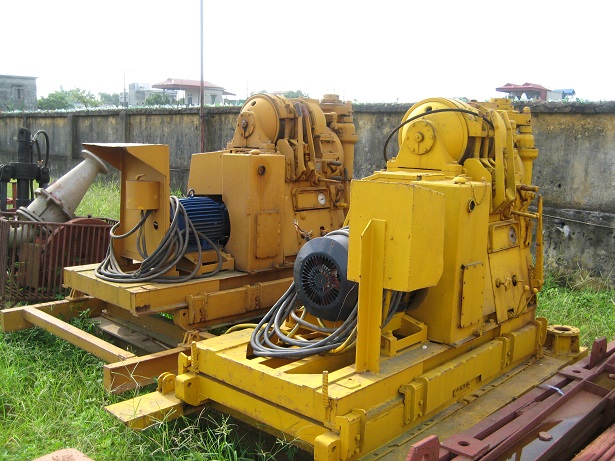

TBM-70

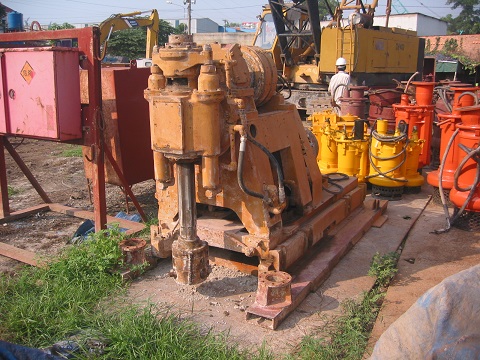

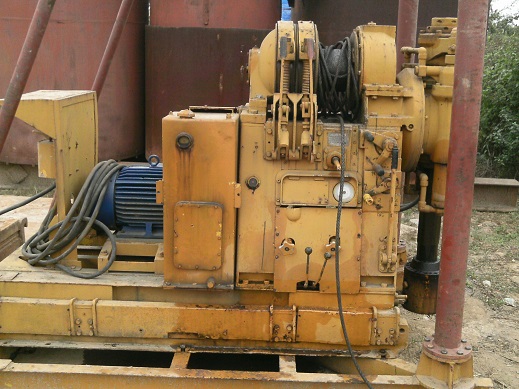

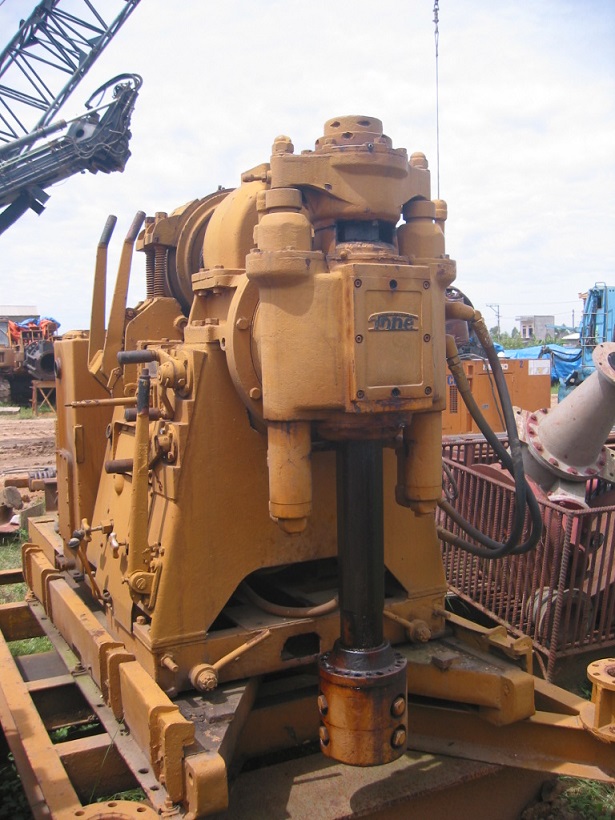

| MACHINE SPECIFICATION OUTLINE | ||||
| Machine Type: | Boring Machine | |||

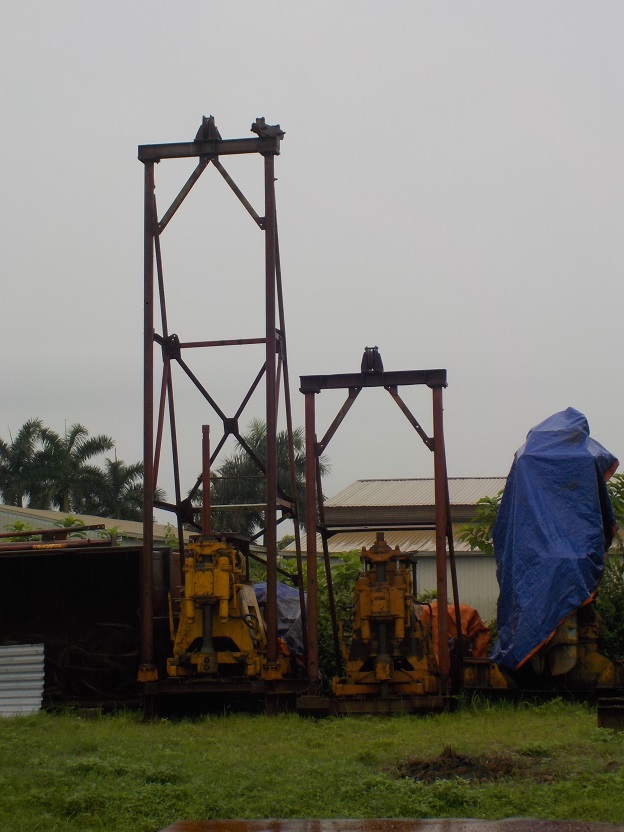

| Model: | TBM-70-B | Possession 2 units in Hanoi | ||
| Manufacturer: | Tone Boring | |||
| Manufacture Year: | 1994 | |||

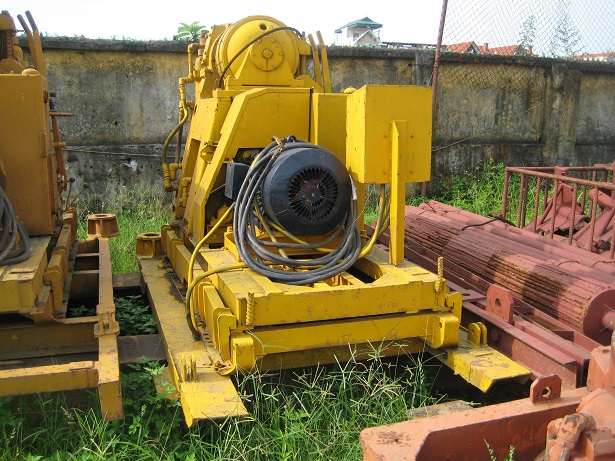

| Power: | Electric Motor 22KW 380V | |||
| Capacity: | Using Rod size | HWY (T90) | ||
| Boring Diameter | BH Method | 500 ~ 1500mm | ||
| Water Well Method | 46 ~ 500mm | |||
| Boring Depth | BH Method | 40 ~ 80m | ||
| Water Well Method | 200 ~ 1000m | |||
| (Used Boring Pump) | ||||
| Spindle Speed (r.p.m): | Normal | 50, 100 150, 170, 300, 500 | ||
| Reverse | 40, 120 | |||
| Spindle Inner Diameter: | 93mm | |||
| Hydraulic Oil system: | Press Force | 6,100kg | ||
| Balance Force | 7,300kg | |||
| Hoisting Force: | 4,000kg | |||
| Dimension: | L 2,500mm | W 1,100mm | H 1,620mm | |
| Weight: | 2,000kg (Body nly) | |||
| Possession Boring Rod: | T-90 L 1.0m ~ 3.0m | |||

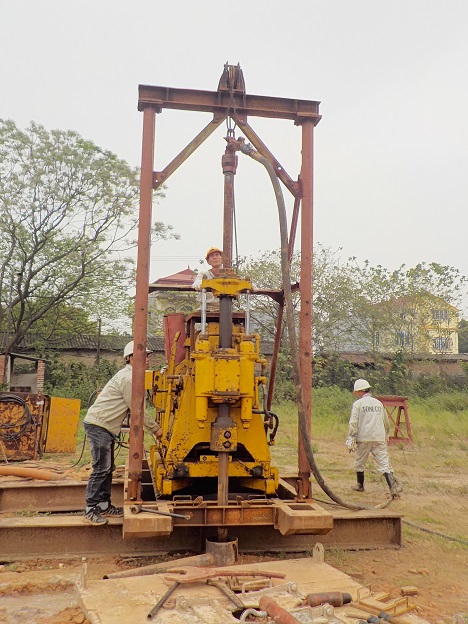

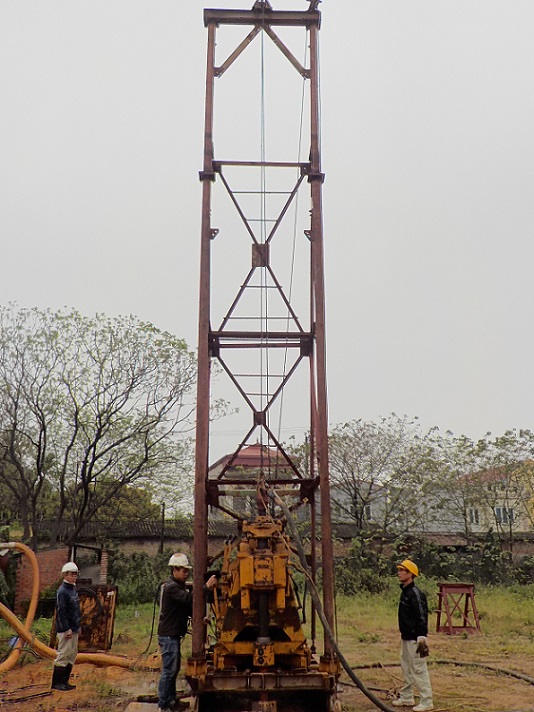

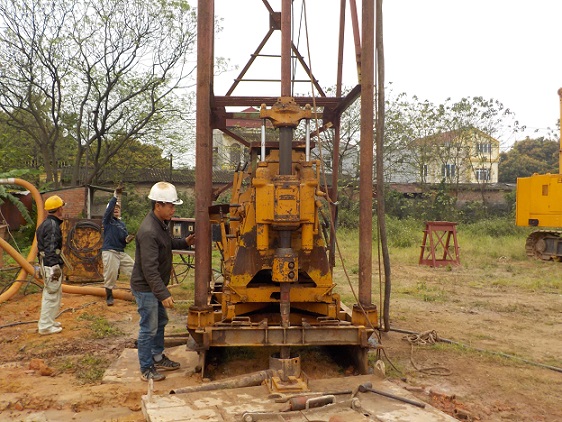

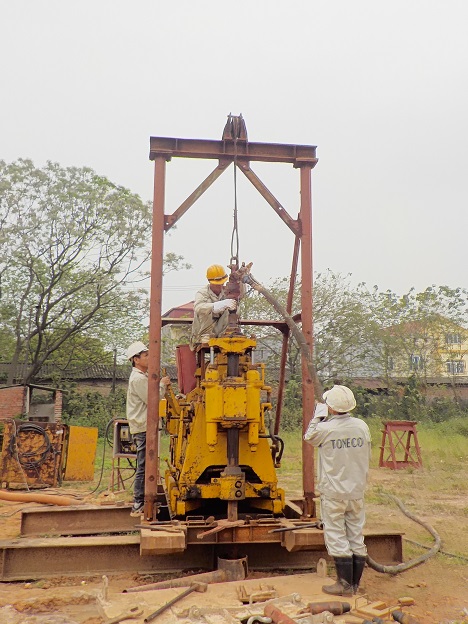

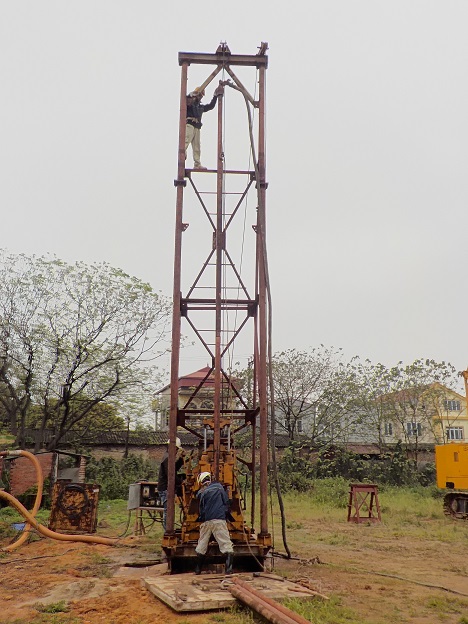

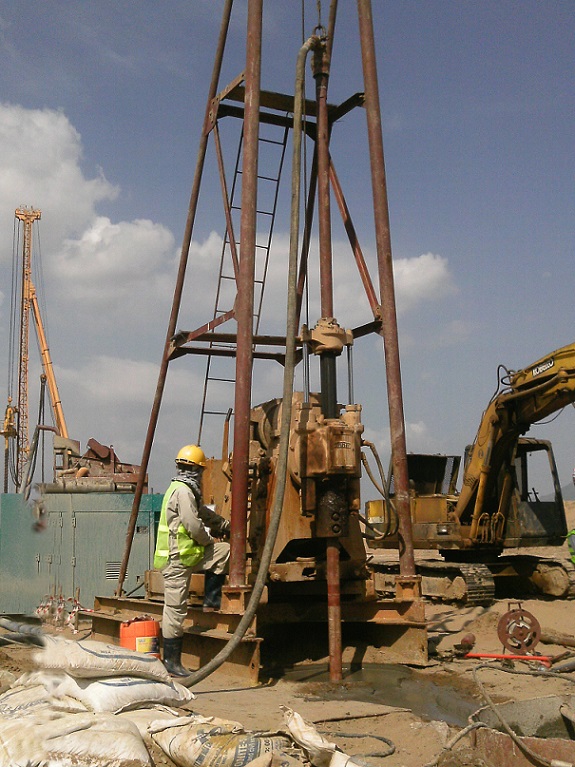

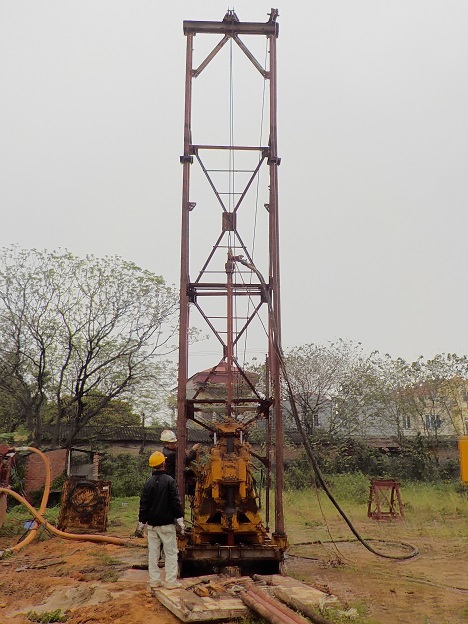

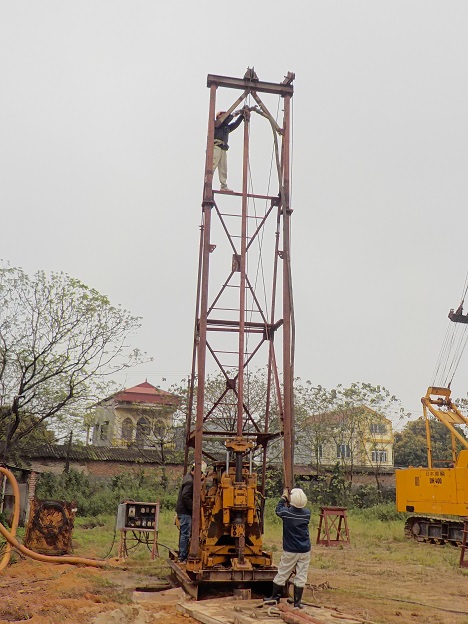

| Possession Tower: | H 4.0m ~ 9.0m | |||

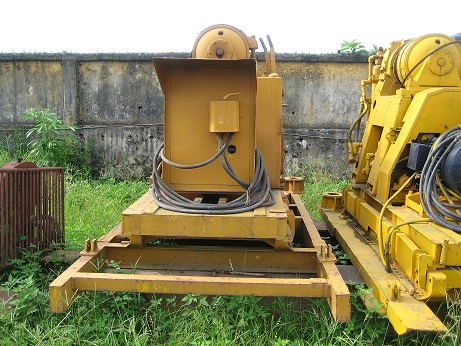

| Special Accessory: | Service Electric Winch | Toyo Koken MA-10G12 | ||
| Roted Load 1100kg | Rope Speed 12m/min | |||
| Motor Out-put 2.5KW 4P Weight 450kg | ||||
| (Sold separately,if machine buying) | ||||
| Toneco Corporation | ||||
