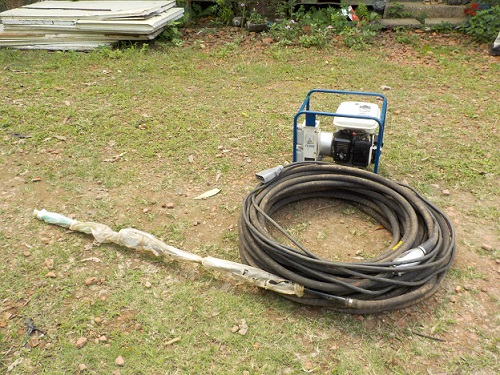

Đầm dùi bê tông FG-200V
| MACHINE SPECIFICATION | ||
| Machine Type: High Cycle Concrete Vibrator | ||

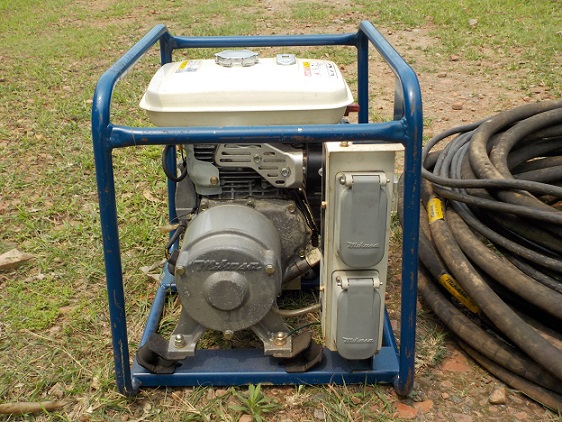

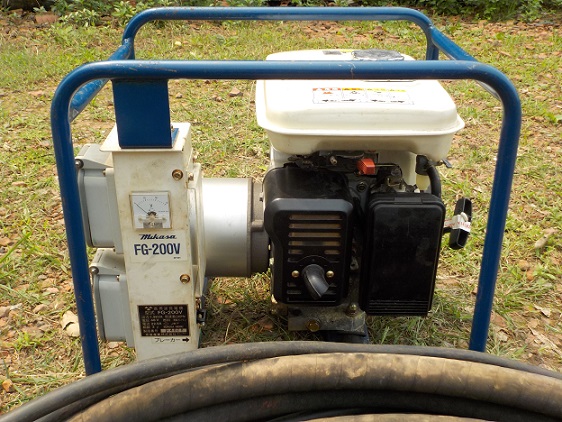

| 1. | High Cycle Engine Generator | |
| Model : | FG-200V | |
| Dimension : | L= 475mm, W= 394mm, H= 448mm | |
| Output: | 1,9KVA, 48V, 22.9A, 240Hz | |
| Receptacles: | 2 | |

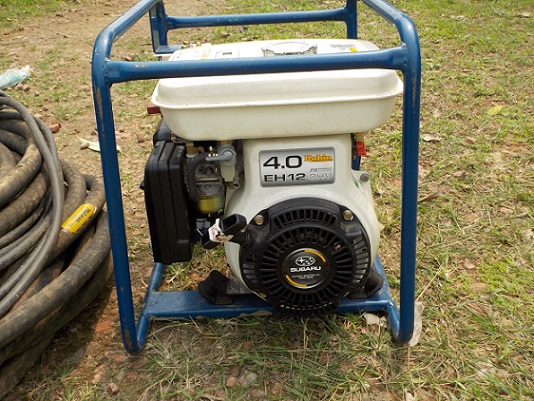

| Power source : | Robin EH12-2D | |
| Max. output 2.6KW (3.5PS) | ||
| weight : | 34.1 kg | |

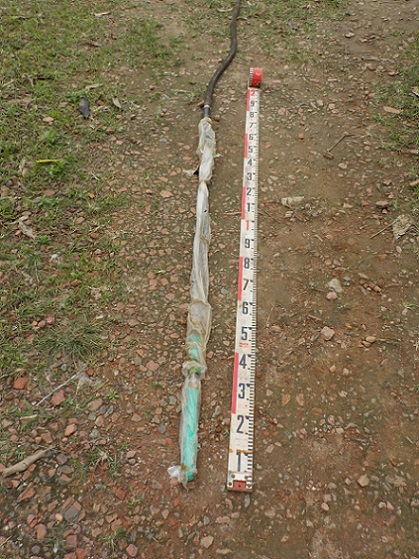

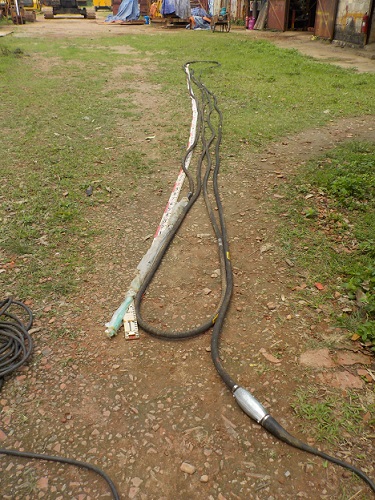

| 2. | High Cycle Internal Concrete Vibrator | |
| Model : | FXB-30B | |

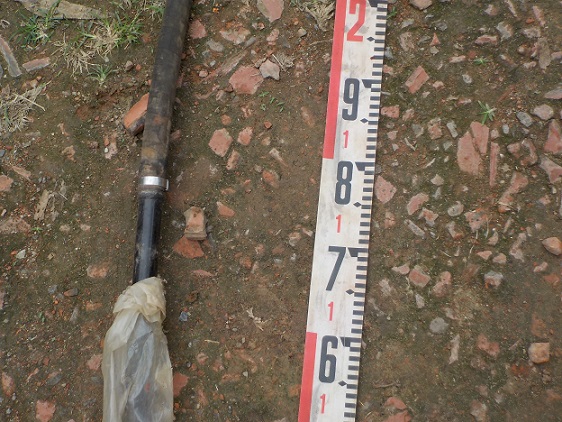

| Vib. Head : | D32 x 1,728mm | |
| Voltage : | 48V | |
| Cycle : | 200/240 Hz | |
| Input : | 0.33 A | |
| Amplitude : | 1.8 mm | |
| Vibration : | 200/240 Hz (12,000/14,400 V.P.M) | |

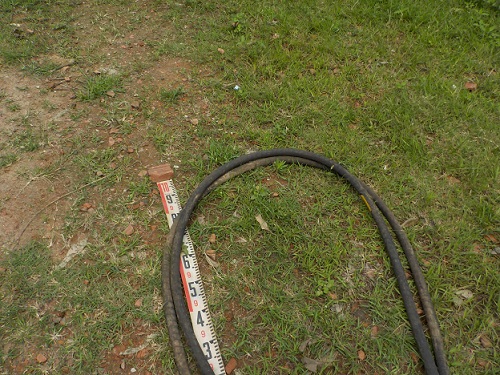

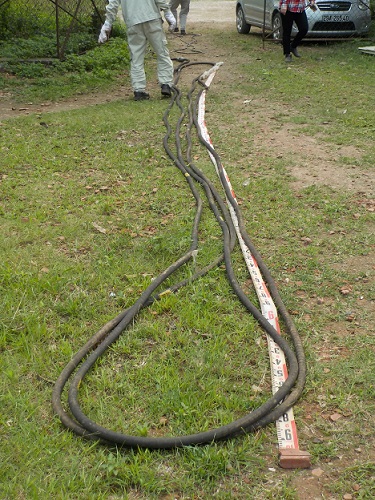

| Cable Length : | 40.0 m | |
| Toneco Corporation | ||
